PORTABLE NUTRIENTS ANALYZER
imacimus® Multi ION electrodes is a nanonutrient management tool. This portable meter of pH, water quality and nutrients works with up to 7 ions simultaneously.
imacimus® allows quick and reliable sample analysis.
Based on the advanced analytical technology of Carbon Nanotubes, imacimus® obtains measures simultaneously and displays up to 10 parameters (7 ions/nutrients/ pH /conductivity/ water hardness) in real time.
imacimus® an indispensable tool to manage the overall nanonutrients for example in precision agriculture, environmental science and water quality tests.
imacimus®
Compare our multi ions analyzer
imacimus® VS laboratory
Applications of the nutrient meter

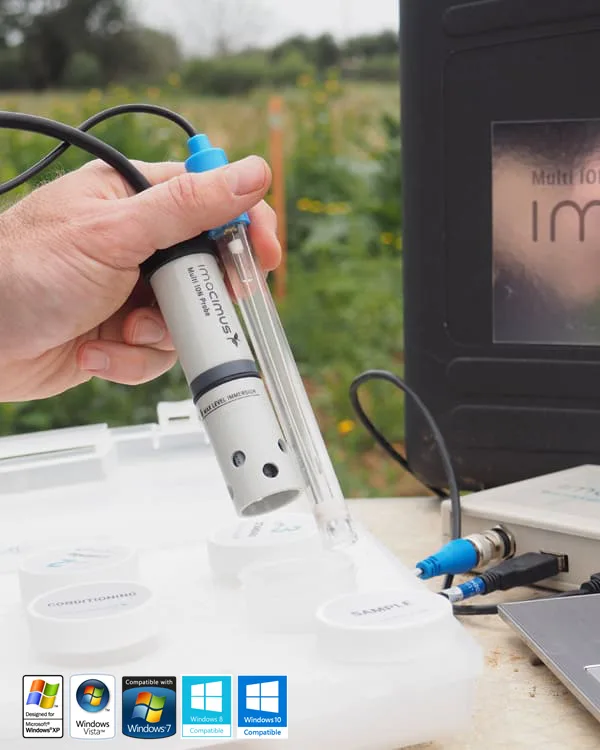

Portable Multi Ion Water Quality Meter
imacimus®
imacimus® line-up is a complete lab equipment to analyze multi-ion trends and maximize crop yields simultaneously. The imacimus comes with all necessary material to start analyzing nutrients in just a few minutes.
imacimus® are supplied with a portable laboratory case to be easily carried and stored. All the ions are specific for each parameter: calcium, chloride, potassium, sodium, magnesium, nitrate and ammonium; plus pH. All ions are determined in a single shot. High reliability compared to lab reports.
imacimus® series are a multi-parameter tool available as a five-parameter and a ten-parameter.
Imacimus 10 includes individual sensors, but please choose the ones you need for Imacimus 5. Easy Replaceable Sensors are sold as spare parts. All listed parameters (Ca+2, Cl-,K+,Na+,NH4+,NO3-,Mg2+) are compatible for imacimus meters. All-solid-state selective electrodes based on Carbon Nanotube Technology. NT Sensors electrodes are made using our patented technology and are allowed to work in all positions (horizontal/inverse) No light or ORP sensitivity.
7 ions & pH Meter
Multiparametric Meter, Multi ION probe for up to 7 electrodes (not included, please select them from the spare parts section*) and accessories. Simultaneous measurement of 7 ION & pH
8 Channels
- Up to 7 ION and pH simultaneously in 60 seconds.
- Measuring range 1 to >10.000 mg/L
- Customize, ask for electrode tips, configure your own imacimus®
- Minimum sample volume 10 ml. Units: mmol/L or mg/L – ppm
- Complete Multi ION probe: Calcium, Chloride, Potassium, Sodium, Ammonium, Nitrate, Magnesium.
The imacimus® portable laboratory include:
imacimus® 10 PACK ALL INCLUDE
- Mullti ION PROBE.
- INCLUDES the following modular ISE (inserted):
(Ca+2, Cl-,K+,Na+,NH4+,NO3-,Mg2+) - Multi Channel IONMETER
- Cable USB ( for data / power)
- Reference electrode/pH.
- Standard calibration MultiION Solutions ,ref HP08 (3x250ml)
- Conditioning MultiION Solution, ref HP08 (1x125ml)
- pH Buffers 4/7 (2x55ml)
- Tweezers
- Calibration case (without reagents)
- Carry case
- Software imacimus® for Windows (free download)
4 ions & pH Meter
Multiparametric Meter, Multi ION probe for up to 4 electrodes (not included, please them select from the spare parts section*) and accessories. Simultaneous measurement of 4 ION & pH
5 Channels
- Up to 4 ION and pH simultaneously in 60 seconds.
- Measuring range 1 to >10.000 mg/L
- Customize, ask for electrode tips, configure your own imacimus 5
- Minimum sample volume 10 ml. Units: mmol/L or mg/L – ppm
- Complete Multi ION probe (Customize your ion): Calcium, Chloride, Potassium, Sodium, Ammonium, Nitrate, Magnesium.
The imacimus® portable laboratory include:
imacimus® 5 PACK IC5
- Multi Channel IONMETER Ref. IC5
- Cable USB ( for data / power)
- Mullti ION PROBE. Ref. IC-B257. Without electrodes
- Reference electrode/pH
- Calibration case (without reagents)
- Carry case
- pH Buffers 4/7 (2x55ml)
- Tweezers
- Software imacimus® for Windows (free download)
F.A.Q. Support
You have an imacimus and need help? Click here:
⬇️User guides, videotutorials and software download⬇️
- All
- Calibration
- First use
- Guides
- Imacimus
- Lifetime
- Orders
- Recalibration
- Samples
- Sensor
- Software
- Standard
- Video tutorials
imacimus user guide
Click for download imacimus user guide
Save time and money
No Reagents. No consumption of reagents per sample. Measure your samples directly without any previous treatment.
Wide measuring range
Usually from 1 to > 10.000mg/L. Usually sample dilutions are not required.
Intuitive and easy to use
The Windows software will able to analyse a lot of samples with its own description, time and date analysis. (.xls (Excel))
Compatible worldwide.
No external power supply required. Powered through a 5 V USB port. Connection to a Windows device is required.
Imacimus is a tool that provides information about macronutrients in an easy and reliable way to be able to better manage cultivation and lowering costs of precision agriculture. (feritirrigation system, hydroponic recirculation system, sap analysis, soil extract, foliage, water, drainage and so forth). Calibrates, measures and shows simultaneously up to 10 parameters (7 ions + pH + conductivity + water hardness) in real time and you just need a minute per sample. Measurements are saved directly in an Excel (.csv) file. The meter is portable and requires a Windows System (pc or laptop) to run the software. Doesn’t need power supply, only a USB port
Once the payment has been confirmed, production time is around 2 to 3 days.
The warranty is valid for 2 years for equipment and 3 months for sensors with a manufacturing defect. Take a look at the Warranty and Refund processes documents.
Please follow the steps of our users guide and First steps videos here:
Need more information? Please download PDF guides here:
One calibration every day you are going to measure. It works for all the measurements / samples
You can measure all necessary samples with a single calibration. However, a recalibration is recommended every 10-15 samples for the Standard 2 (you can do it manually or set alarm in our software).
It’s calculated to last for 60 calibrations approximately
There is no fixed number for average number of samples for probe exchanging, although we usually use a minimum basis of 500 samples. There are probes that usually go far beyond that number without loss of sensitivity and others that hardly get to 500. Each probe works as an individual, when one sensor is off, the others continue working properly. The replacement is also done individually.
No, each sensor works individually. Even though one is used up or damaged, the rest continue working properly.
It’s done individually and it only requires tweezers. Please refer to this video:
Need more information? Please download PDF guides here:
We manufacture multiION standards in order to be able to calibrate up to seven IONs simultaneously. You could calibrate individually each ion with its single standard, but it is not so common at least for agro field. Lab uses can require specific standards, so the use of single ion standards would make more sense.
Easy measurement of samples in a quick and reliable way. Please refer to this video:
Standard:
Calibration Solution:
HP08 P1,P2,P3
Conditioning Solution:
HP08
SAP:
Calibration Solution:
SAP P1,P2,P3
Conditioning Solution:
SAP CON
pH:
pH 4, pH 7
Conditioning Solution for pH electrodes
